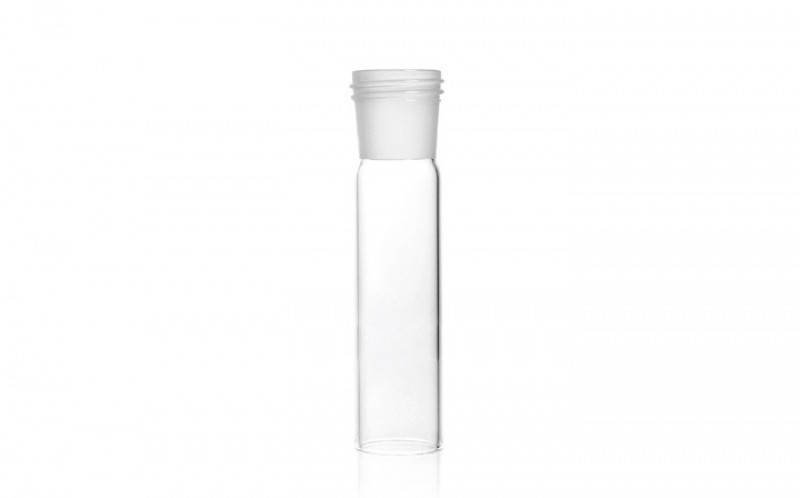

SJ-DURAN® Safety joints, threaded sockets
![](https://www.gmmpfaudler.com/thumb/930/Platzhalter_720x448px_4.jpg)
描述
- Suitable for use under vacuum and pressure
- Anti-locking system results in reduced risk of breaking and increases safety
- DWK ground - 600 grain
- The use of NS grooved sleeves PTFE is recommended, p.44
- Temperature resistance:
- + 200°C - not insulated,
- minus temperature limited by grinding grease/sealing
- Pressure resistance -1/+0.5 barg
- Material in contact with product: Borosilicate glass 3.3
- Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
