Normag - Lab & Process Glass

Technologies

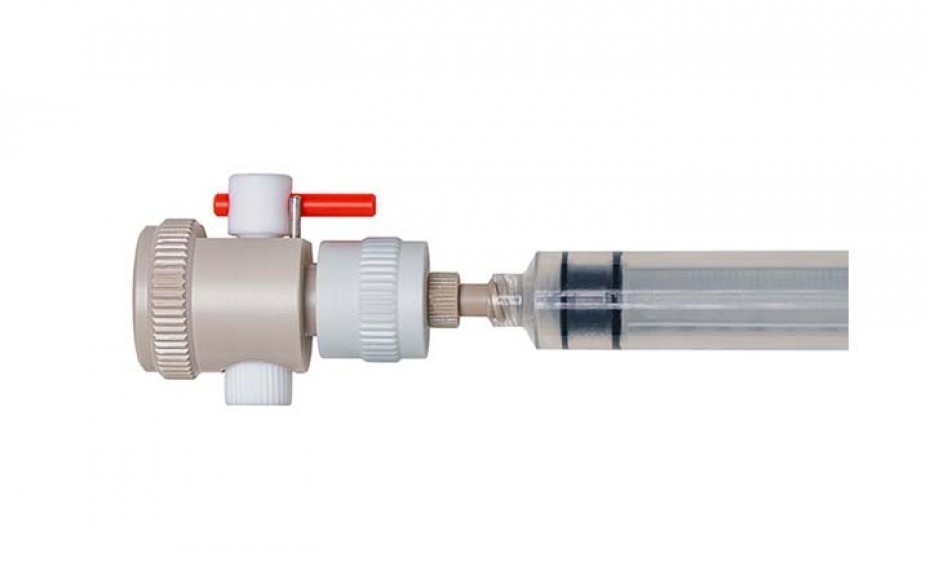

Security sampling valve

描述

  • Valve can be closed after each sampling or for changing the septum
  • Scope of delivery without septum and without syringe
  • Prevents leakage of the product
  • Material septum valve: Zedex530 (chemical and thermal properties like PTFE)
  • Material stopcock plug: PTFE
  • Material screw cap: Zedex100 (high strength, low chemical resistance)
  • Optionally available with metal cap made of RA2 with „Luer-Lock
  • Sealing between valve and GL-thread by Teflon sleeve
  • No additional seal required
  • Temperature resistance: -20/+200°C
  • Material in contact with product: Zedex 530/PTFE


新闻与媒体

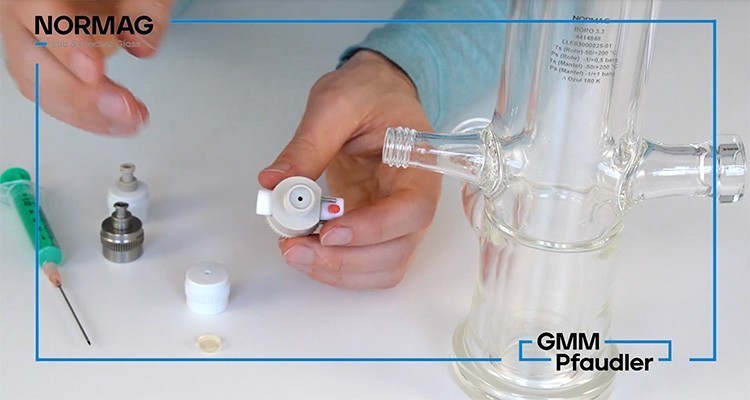

Normag Security Flex Sampling Valve by GMM Pfaudler
