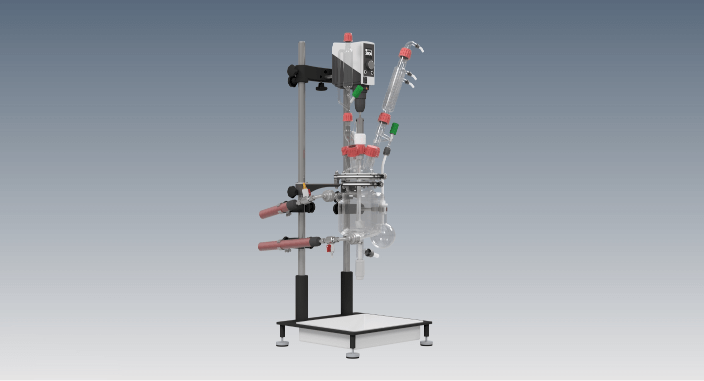

Lab Fast Pro Reactor
- Universal support frame, that accommodates vessels from 100ml to 10l
- Temperature range: -90ºC to +200ºC
- Two sizes of the main flange (DN100 and DN150) available to work with different sizes of the vessels and stirrer shafts
- Universal lid with 6 standard joints even for DN100 flange
- Set of different plug&play packs (pH-measurement, reflux, gas purge etc) to meet your process requirements
Overview
The Lab Fast Pro Reactor was designed by collective efforts of chemists and engineers for chemists. It allows to work with vessels of different sizes by changing the glassware in mere minutes, not hours. A unique frame design and vessel geometry allow to replace only the vessels themselves, keeping all the other glassware and accessories in place.
This concept will not only save you time, but also money. Through the universal design and the usage of standard joints allows the usage of any thermostats, pumps, overhead stirrers and glassware from any manufacturer, thus giving unmatched flexibility. If you need even more versatility, you can always ask for additional customization, we are ready to help!
Why you should buy this system from NORMAG
UNIVERSAL SUPPORT FRAME
- Vessels from 100ml to 10l on one support bench-top frame
- Fits reactors, filters, filter-reactors
- PE drip tray
UNIQUE CLAMP
- Holds vessel even when lid clamp is opened
- No tools or additional accessories are required to mount the vessel or to regulate tightness of the seal.
INTERCHANGEABLE VESSELS WITHOUT CHANGING ANY OTHER GLASSWARE

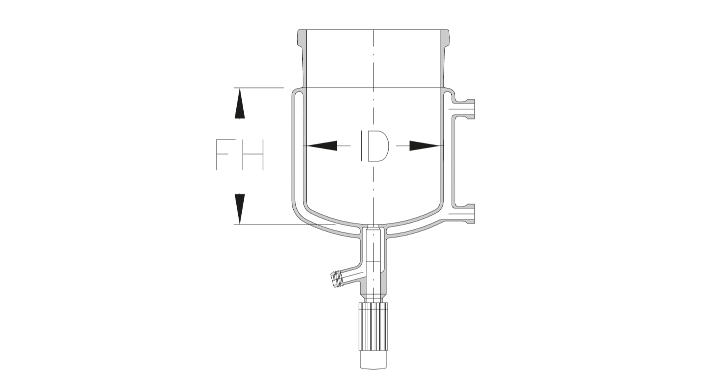

- All vessels come with process geometry – torispherical (dished) bottom and 1:1.15 – 1:1.3 ID to FH ratio. This guarantees optimal mass/ energy transfer and further easy scale up.
-
Neck of the vessel depends on the size.
- DN100 – 100ml, 250ml, 500ml, 1l, 2l (DN 100 neck 3l and 5l – optional)
- DN150 – 3l, 5l
- DN200 – 5l, 10l
- Single jacketed and vacuum jacketed vessels are available

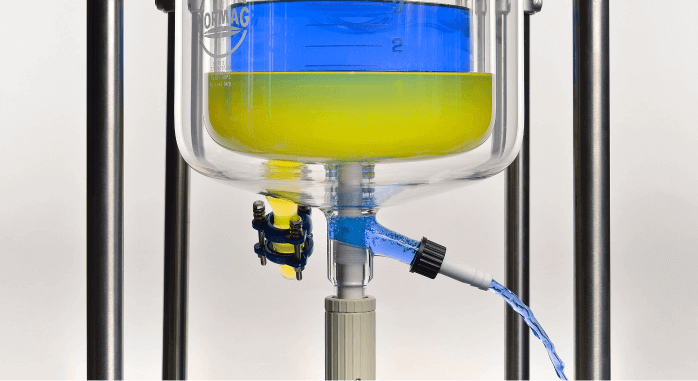

SPRING LOADED BOTTOM DRAIN VALVE
- Only glass and PTFE is in contact with media
- No risk of vessel’s breakage or leaks even when working in a wide temp range thanks to spring loaded valve, which eliminates the problem of PTFE shrinking/expanding
- Full drain design
- No additional seals
- Standard GL25 thread on the outlet nozzle to connect a PTFE tube
- Jacketed bottom drain valve as an option to drain the media at high temperatures
UNIQUE STIRRER GUIDE
- No PTFE flaking thanks to PEEK-to-Glass sealing
- Working 24/7 from a slight overpressure down to 7mbars
- Only PTFE, glass and PEEK are exposed to vapors/media, which guarantees perfect chemical resistance
STIRRER GUIDE QUICK COUPLING
- No more worries about possible stress in the center neck even when drive is not positioned 100% concentrically
- No tools required to engage stirrer coupling and stirrer guide
- No need to precisely center the stirrer drive thanks to a unique design
- Fits any chuck with chucking diameter of 8mm or bigger
- Continuous operation up to 500 rpm or even 800rpm for a short period of time
OVERHEAD STIRRER HOLDER ALLOWS TO EASILY POSITION THE OVERHEAD STIRRER
- Fits any overhead stirrer that you can find on the market with 13mm or 16mm rod (IKA, Heidolph etc) or even powerful ones with two rods (CAT)
- Overhead stirrer chuck will always stay vertical thanks to extended support bed
UNIVERSAL LID OF TWO SIZES (DN100 AND DN150) WITH 1 CENTRAL AND 5 PERIPHERICAL NECKS
- allows to install not just stirrer guide and condenser, but also different sensors, dosing funnels for liquids and solids and many more
- Security joints (SJ) for a reliable glassware fixation without additional clamps
- Standard B-type joints 4xSJ29/32 and 2xSJ19/26 allow to use anyglassware from 3rd-party manufacturers
Additional modules and accessories
1.
Set of drain and ventilation valves with clamps for easy draining of HTF (oil), when replacing one vessel with another
2.

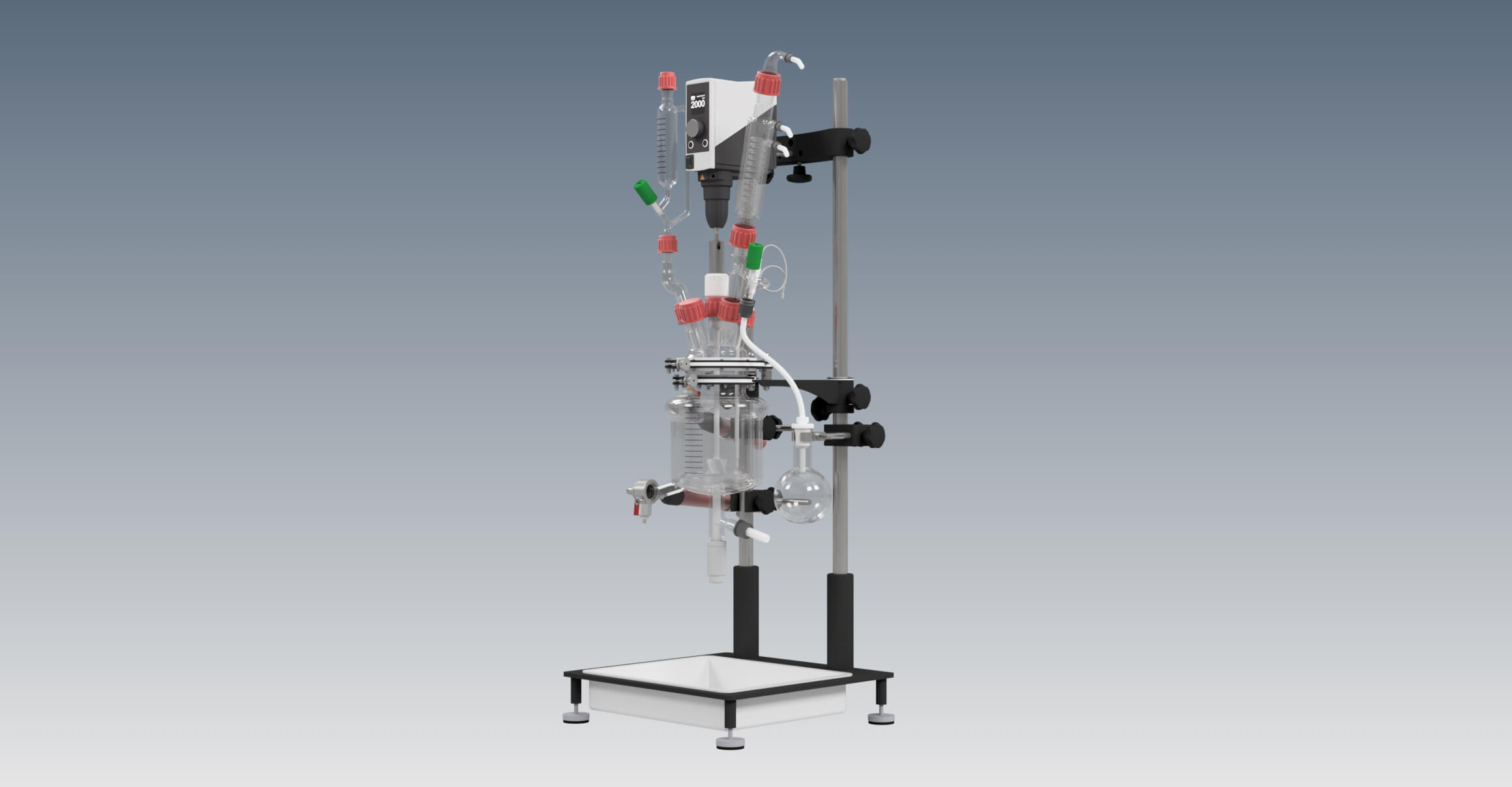

Distillation module. Includes reflux divider with receiving flask of your choice and set of PTFE tubes and fittings. Allows to perform distillations and concentrate your reaction mixtures
3.
Liquid dosing module. Includes a chemical resistant membrane pump with a dosing speed starting from of 0.03ml/min and all necessary clamps to fix it on the frame and fittings to connect it to the reactor
4.
pH-module. Includes pH-meter with 425mm 3in1 pH-sensor and a PTFE adapter to fit any vessel size
5.
Gas distribution set. Includes Gas inlet tube, gas frit and adapter to mount on the reactor’s lid
6.
Range of different stirrer shafts with additional rotors for better mixing of even high viscos media
7.
Solid dosing funnels with volumes from 50ml to 1000ml with integrated cooler at the bottom to prevent vapors going from the reactor into the funnel
8.
Liquid dosing with jacketed and non jacketed funnels with volumes from 50ml to 1000ml
9.
Customizable PTFE lids to work with heavy equipment like homogenizers or ultrasonic generators.
10.
Piston for bottom drain valve with an integrated Pt100 sensor for measuring the process temperature even in a very small volume
11.
Fittings for an easy and tight connection of bottom drain valve to other units like receiver, filter, another reactor etc
12.
Software and hardware for process automation
