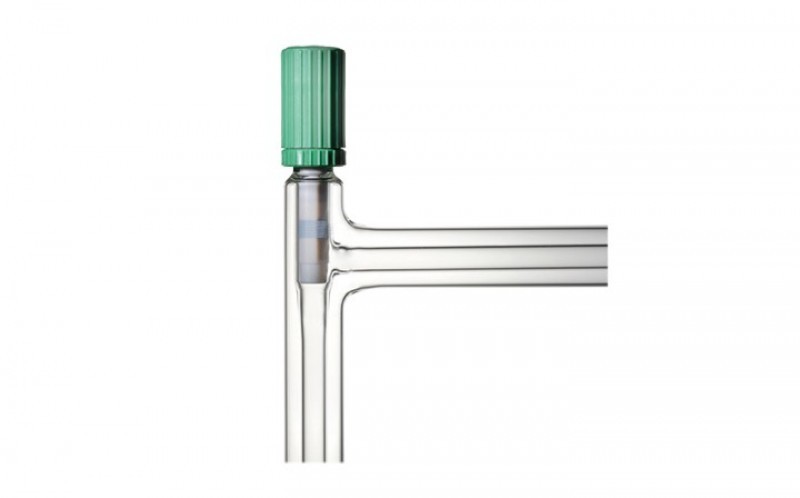

VH angle spindle valves with tempering jacket

Description

  • Worldwide lowest leakage rate of 1x10-12 mbar*l/s
  • Optimized without dead space
  • Flexible use for liquids and gases
  • Safety through protection against unscrewing
  • Highly vacuum-tight, without open sealing rings, grease-free and free of dead space due to complex but inconspicuous sealing system under PTFE coating
  • Sealing system adjustable
  • Only available in thick-walled and extra thick-walled
  • Material handle not in contact with product
  • Material handle: PA 6 GF 30, 0/+100°C
  • Material O-ring: FKM, -40/+180°C
  • Material Metal parts: brass, -50/+200°C
  • Temperature resistance: -100/+200°C, at T < -50°C readjustment may be necessary
  • Pressure resistance: -1/+0,5 barg
  • Material in contact with product: Borosilicate glass 3.3, PTFE
  • With tempering jacket



Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.


News & Media

eBrochure

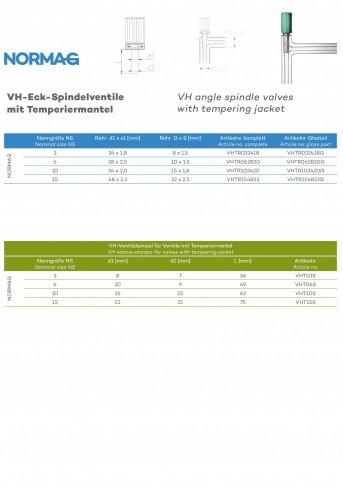

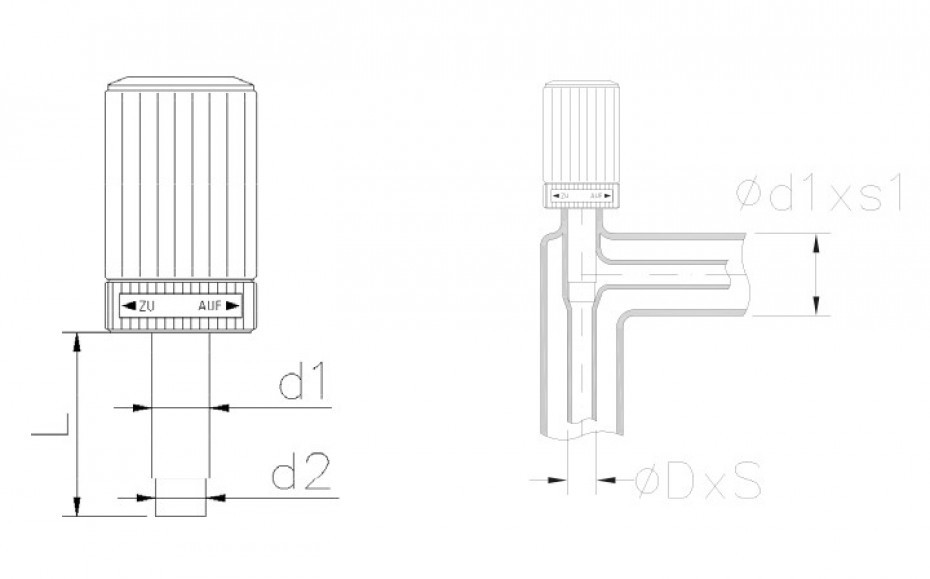

Technical Details
