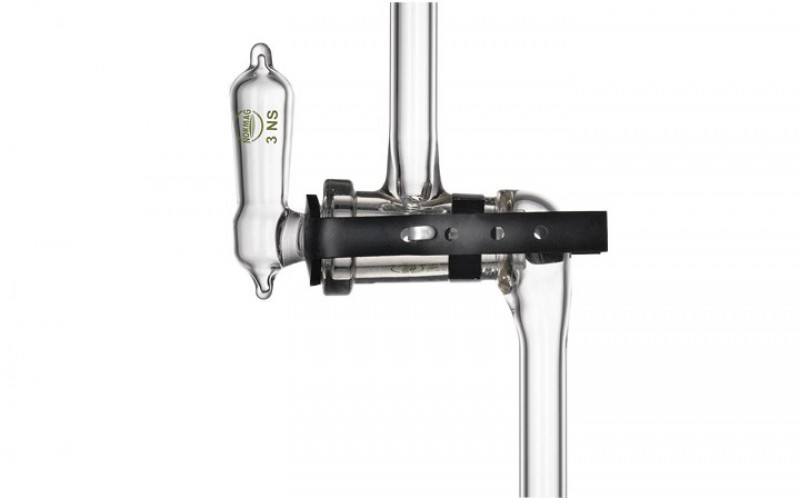

SH one way high vacuum stopcocks

Description

  • NORMAG fine-grinding 1200 grit
  • Stopcock sleeve and hollow glass stopcock keys handmade by Normag in Ilmenau, Germany, guarantees highest quality
  • Durable and smooth running
  • Requires less grinding grease and is much less sticky
  • High vacuum tight
  • Always tight, even with temperature changes
  • With rubber tap safety device
  • Temperature resistance:
    • + 200°C - not insulated,
    • minus temperature limited by grinding grease/sealing
  • Pressure resistance: -1/+0.1 barg
  • Material: borosilicate glass 3.3
  • Material tap safety device: FKM, -40/+180°C



Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
