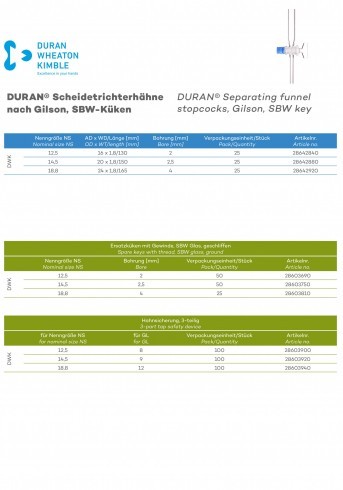

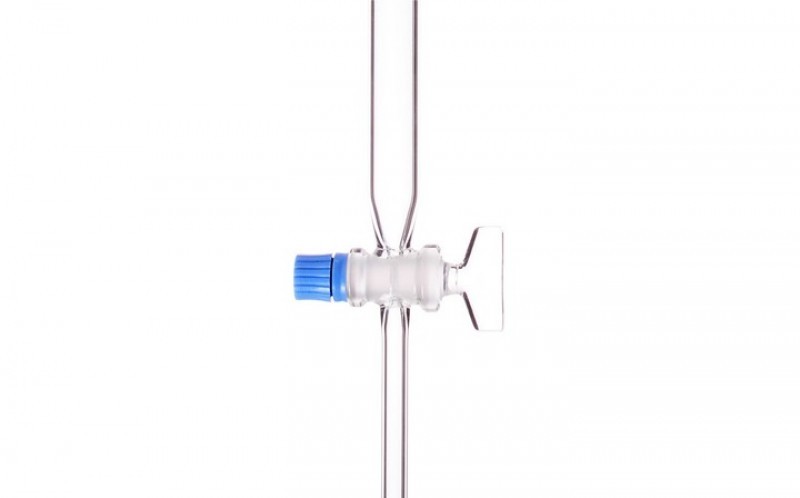

DURAN® Separating funnel stopcocks, Gilson, SBW key

Description

  • DWK ground - 600 grain
  • Pressed solid glass key
  • 3-part tap safety device
  • Material washer: HDPE, -50/+150°C
  • Material o-ring: NBR, -30/+100°C, short time until +120°C
  • Material screw cap: HDPE, -50/+150°C
  • Temperature resistance: -50/+150°C
  • Pressure resistance: -1/+0,5 barg
  • Material in contact with product: Borosilicate glass 3.3
  • Three part retaining devices not in contact with product


Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
