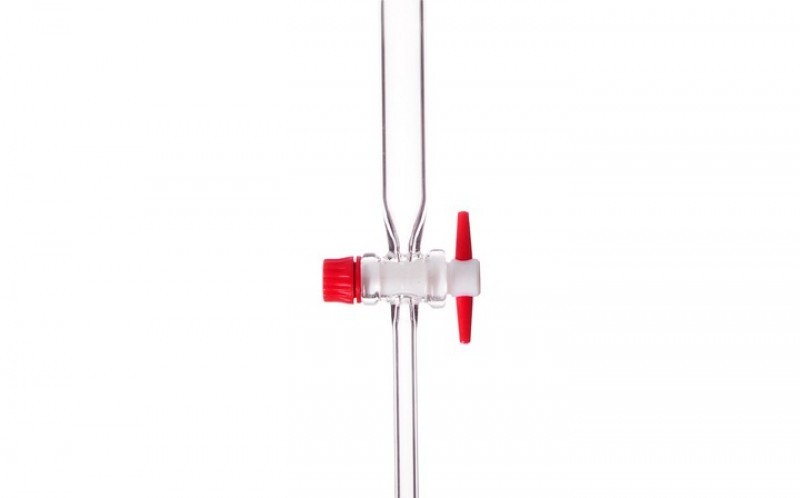

DURAN® Separating funnel stopcocks, Gilson, PTFE key

Description

  • Ground and polished
  • 3-part tap safety device
  • Material washer: PP (red), -50/+150°C
  • Material o-ring: NBR, -30/+100°C, short time until +120°C
  • Material screw cap: PP (red), -50/+150°C
  • Temperature resistance: -50/+150°C (complete stopcock)
  • Pressure resistance: -1/+0,5 barg
  • Material in contact with product: Borosilicate glass 3.3, PTFE



Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
