Glass Components for Processors
Normag - Lab & Process Glass
Technologies

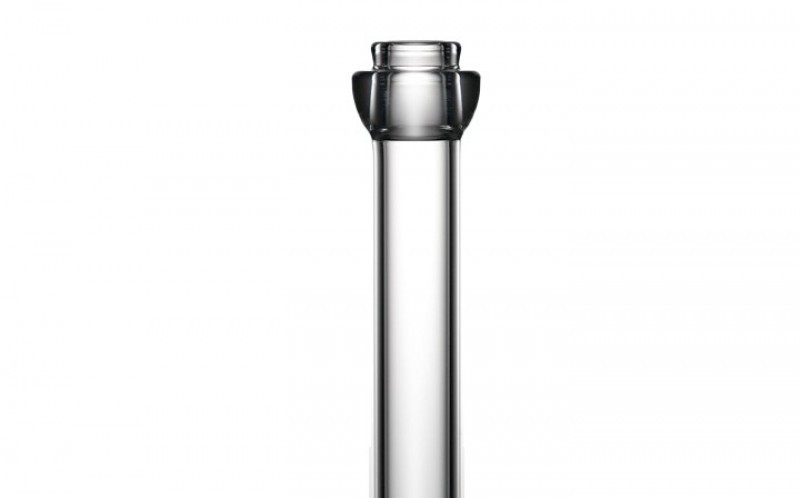

SP-Rotulex balls
![](https://www.gmmpfaudler.com/thumb/930/RS-Rotulex-Kugeln_1.jpg)
Description
- Sealing surfaces polished
- Seal ring required
- Temperature resistance:
- + 200°C - not insulated,
- minus temperature limited by grinding grease/sealing
- Pressure resistance:
- -1/+0.1 barg when using conventional clamps,
- -1/+0.5 barg with S/KS/SP ground joint p. 58 or S/KS/SP clamp ring connection p.61
- Material in contact with product: Borosilicate glass 3.3
Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
