Glass Components for Processors

Normag - Lab & Process Glass

Technologies

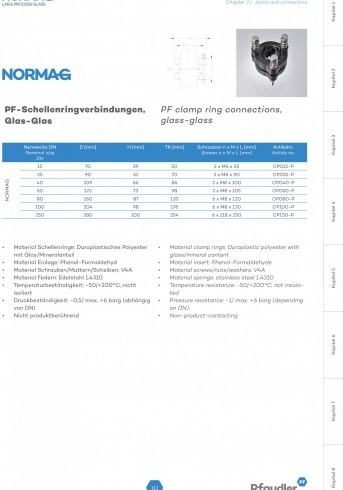

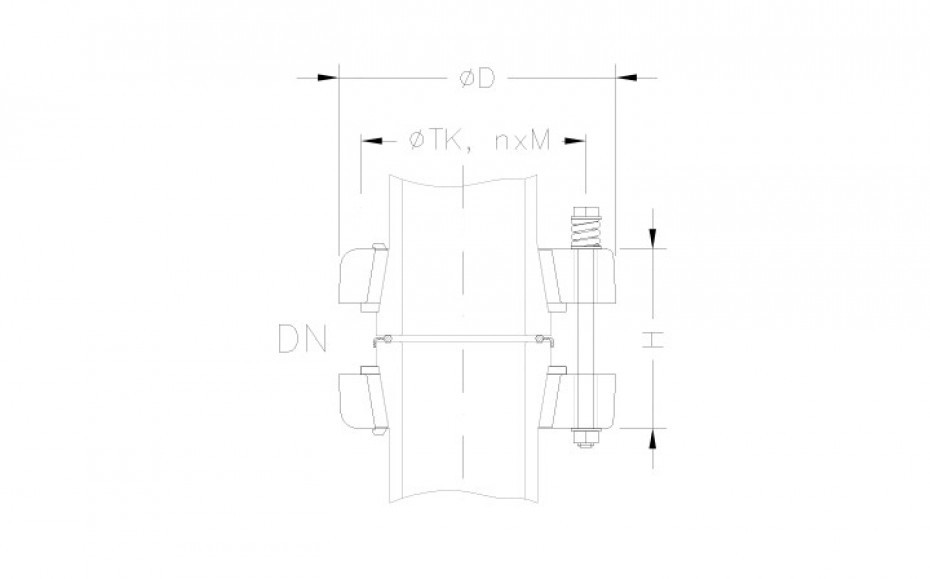

PF clamp ring connections, glass-glass

Description

  • Material clamp rings: Duroplastic polyester with glass/mineral content
  • Material insert: Phenol-Formaldehyde
  • Material screws/nuts/washers: V4A
  • Material springs: stainless steel 1.4310
  • Temperature resistance: -50/+200°C, not insulated
  • Pressure resistance: -1/ max. +6 barg (depending on DN)
  • Non-product-contacting
