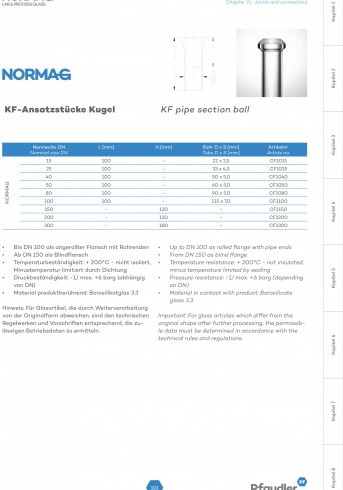

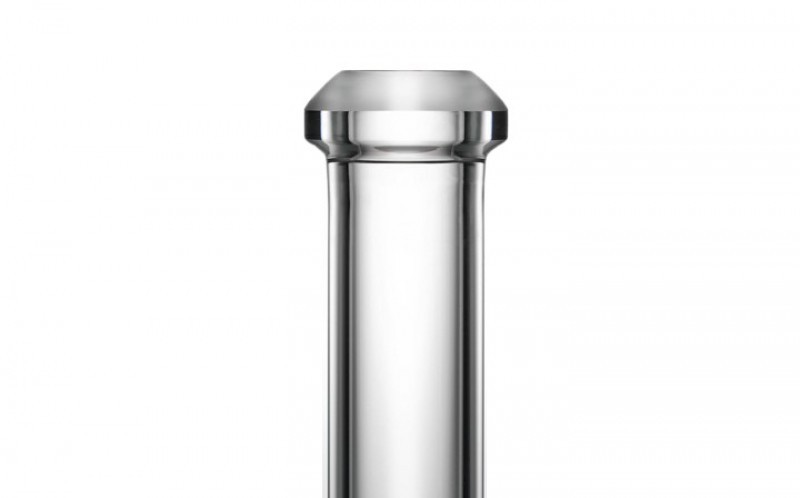

KF pipe section ball

Description

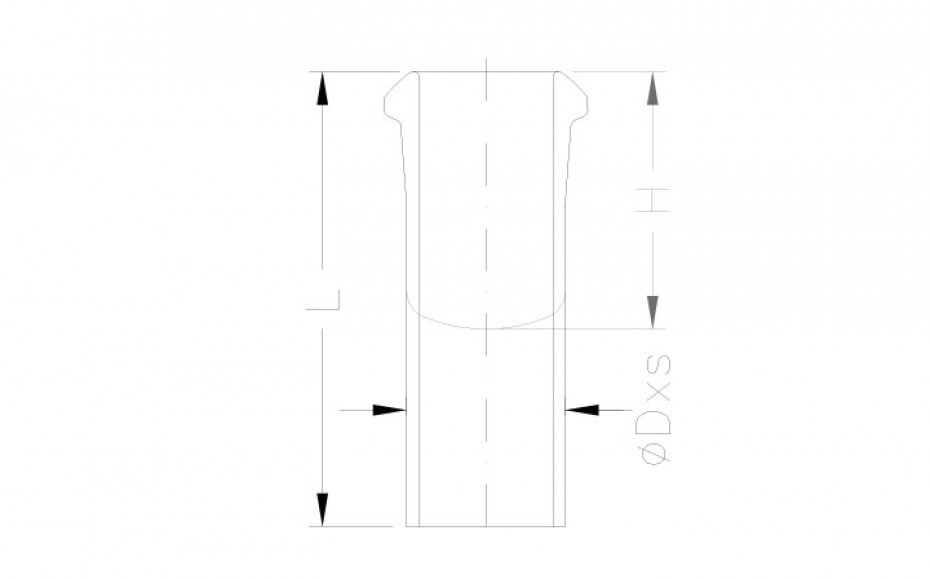

  • Up to DN 100 as rolled flange with pipe ends
  • From DN 150 as blind flange
  • Temperature resistance:
    • + 200°C - not insulated,
    • minus temperature limited by sealing
  • Pressure resistance: -1/ max. +6 barg (depending on DN)
  • Material in contact with product: Borosilicate glass 3.3


Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
