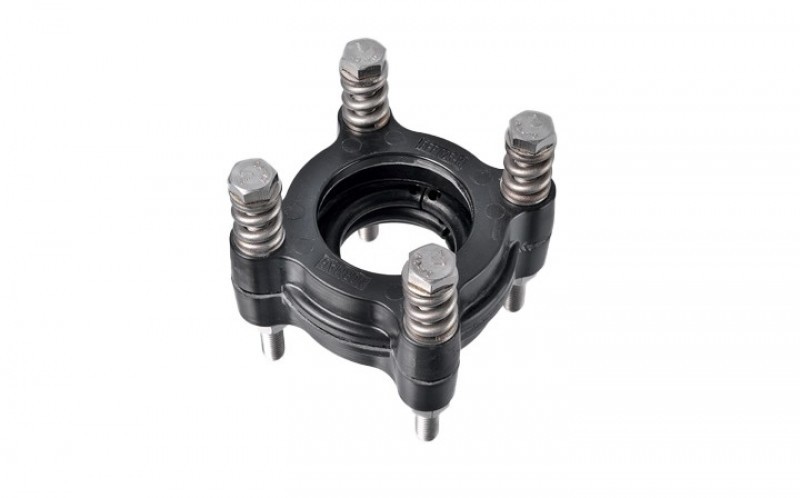

KF clamp ring connections, glass-glass
Description
- Material clamp rings: Duroplastic polyester with glass/mineral content
- Material insert: Phenol-Formaldehyde
- Material screws/nuts/washers: V4A
- Material springs: stainless steel 1.4310
- Temperature resistance: -50/+200°C, not insulated
- Pressure resistance: -1/ max. +6 barg (depending on DN)
- Non-product-contacting
