Technologies

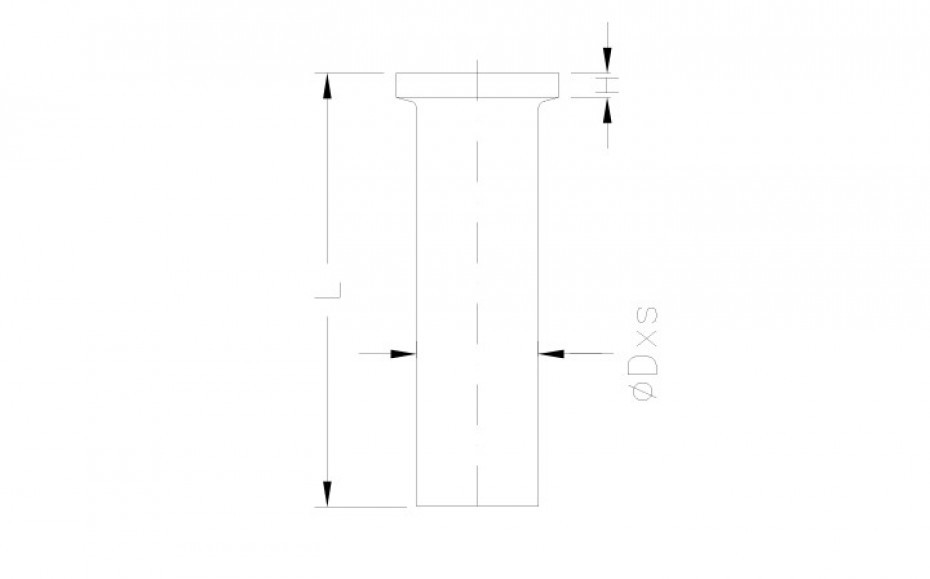

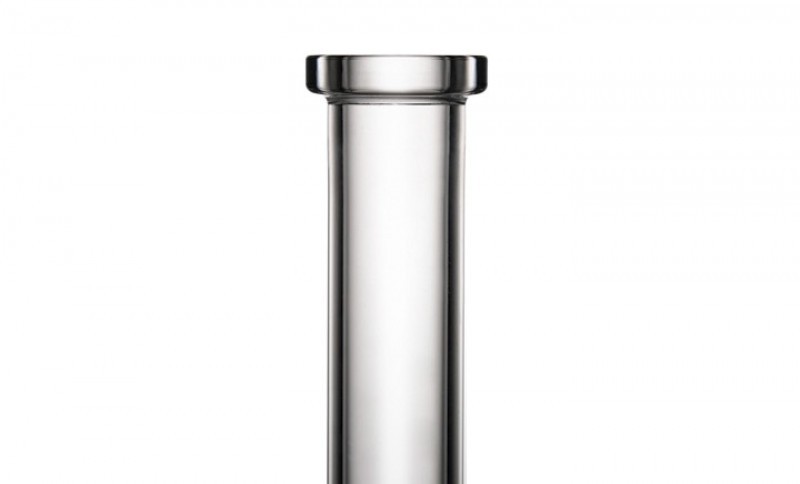

HF connectors
![](https://www.gmmpfaudler.com/thumb/930/HF-Verbindungsstuecke_1.jpg)
Description
- NORMAG version CHFN10-CHFN50 with thick-walled flank for longer durability
- The articles CHF10-CHF50 are suitable for quick connections, but are subject to a higher risk of breakage.
- Temperature resistance:
- + 200°C - not insulated,
- minus temperature limited by sealing
- Pressure resistance: -1/+0,5 barg
- Material in contact with product: Borosilicate glass 3.3
Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
