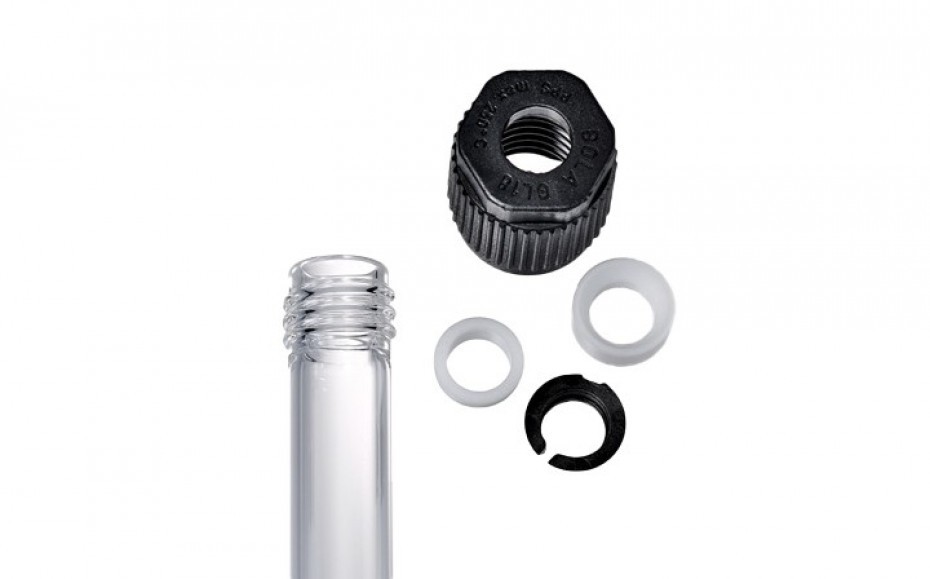

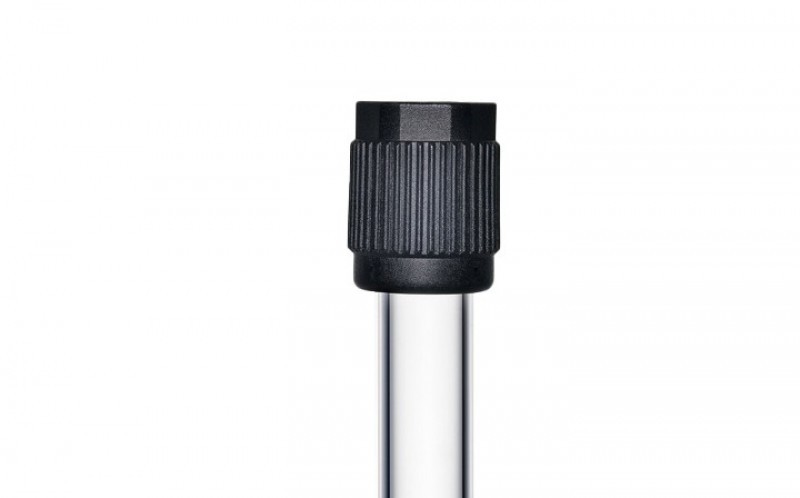

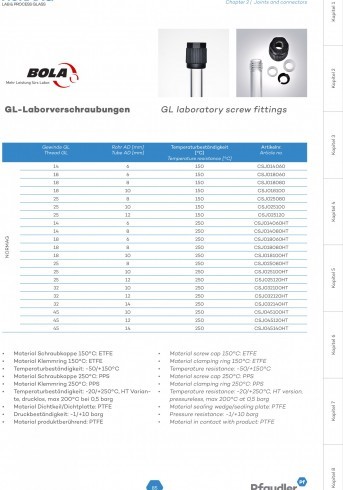

GL laboratory screw fittings

Description

  • Material screw cap 150°C: ETFE
  • Material clamping ring 150°C: ETFE
  • Temperature resistance: -50/+150°C
  • Material screw cap 250°C: PPS
  • Material clamping ring 250°C: PPS
  • Temperature resistance: -20/+250°C, HT version, pressureless, max 200°C at 0,5 barg
  • Material sealing wedge/sealing plate: PTFE
  • Pressure resistance: -1/+10 barg
  • Material in contact with product: PTFE
