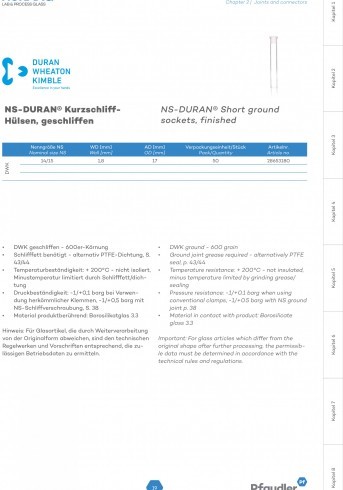

NS-DURAN® Short ground sockets, finished

Description

  • DWK ground - 600 grain
  • Ground joint grease required - alternatively PTFE seal, p. 43/44
  • Temperature resistance:
    • + 200°C - not insulated,
    • minus temperature limited by grinding grease/sealing
  • Pressure resistance:
    • -1/+0.1 barg when using conventional clamps,
    • -1/+0.5 barg with NS ground joint p. 38
  • Material in contact with product: Borosilicate glass 3.3
  • Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
