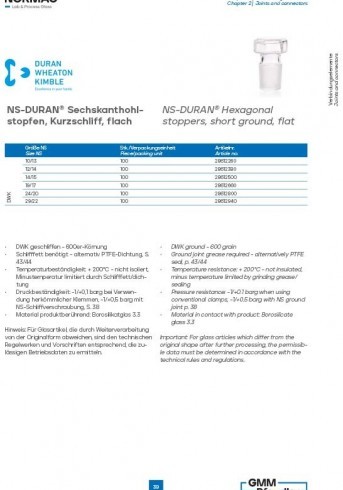

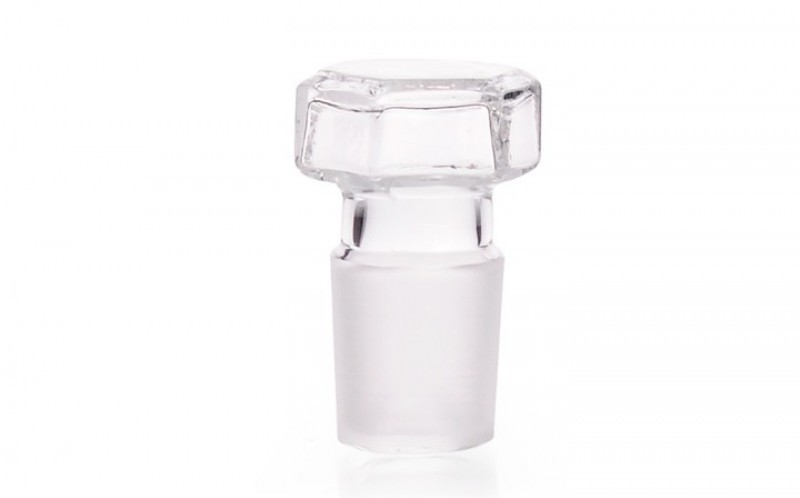

NS-DURAN® Hexagonal stoppers, short ground, flat
![](https://www.gmmpfaudler.com/thumb/930/Platzhalter_720x448px_1628154089.jpg)
Description
- DWK ground - 600 grain
- Ground joint grease required - alternatively PTFE seal, p. 43/44
- Temperature resistance:
- + 200°C - not insulated,
- minus temperature limited by grinding grease/sealing
- Pressure resistance:
- -1/+0.1 barg when using conventional clamps,
- -1/+0.5 barg with NS ground joint p. 38
- Material in contact with product: Borosilicate glass 3.3
- Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
