Glass Components for Processors

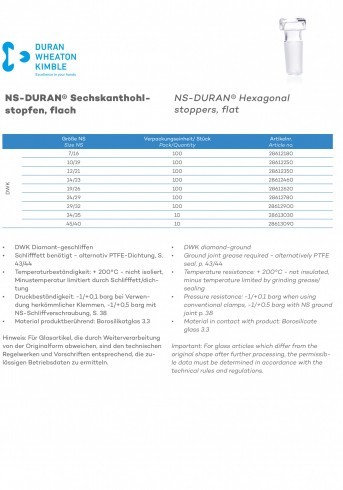

NS-DURAN® Hexagonal stoppers, flat

Description

DWK diamond-ground
Ground joint grease required - alternatively PTFE seal, p. 43/44
Temperature resistance:
- + 200°C - not insulated,
- minus temperature limited by grinding grease/sealing
Pressure resistance:
- -1/+0.1 barg when using conventional clamps,
- -1/+0.5 barg with NS ground joint p. 38
Material in contact with product: Borosilicate glass 3.3
Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
