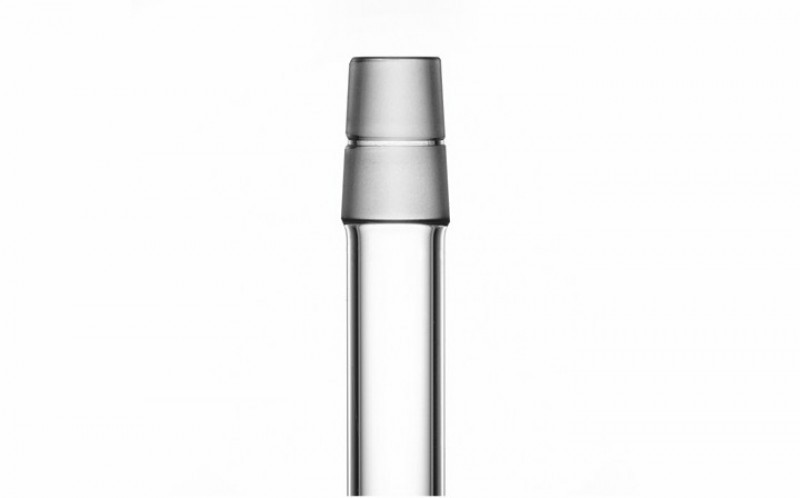

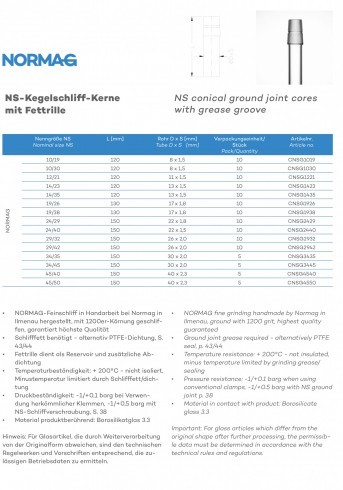

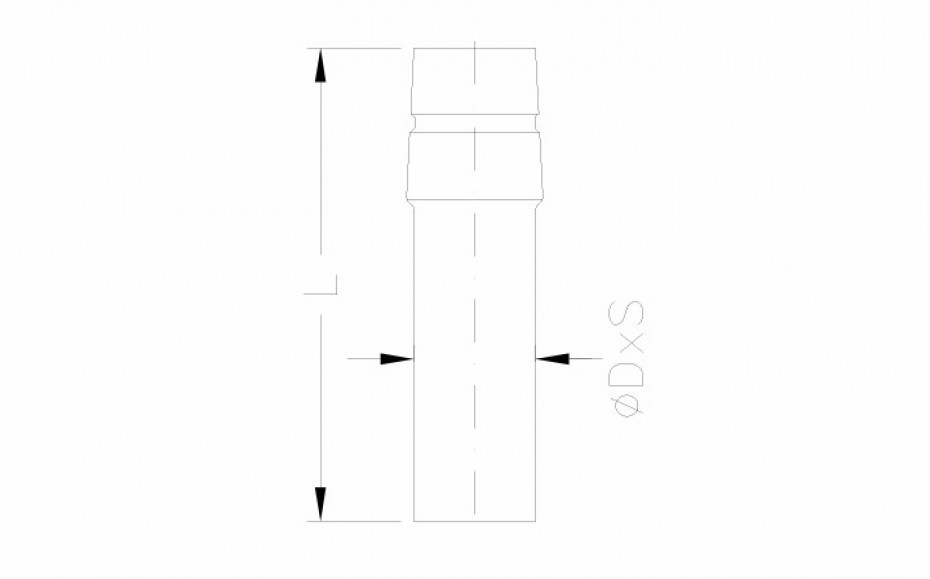

NS conical ground joint cores with grease groove
![](https://www.gmmpfaudler.com/thumb/930/NS-Kegelschliff-Kerne-mit-Fettrille_1.jpg)
Description
- NORMAG fine grinding handmade by Normag in Ilmenau, ground with 1200 grit, highest quality guaranteed
- Ground joint grease required - alternatively PTFE seal, p. 43/44
- Temperature resistance:
- + 200°C - not insulated,
- minus temperature limited by grinding grease/sealing
- Pressure resistance:
- -1/+0.1 barg when using conventional clamps,
- -1/+0.5 barg with NS ground joint p. 38
- Material in contact with product: Borosilicate glass 3.3
- Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
