Glass Components for Processors

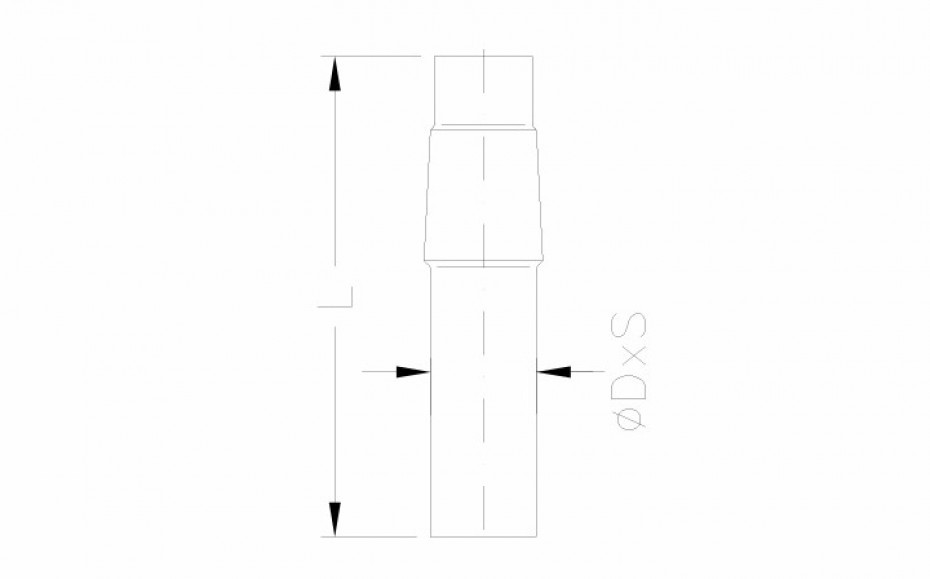

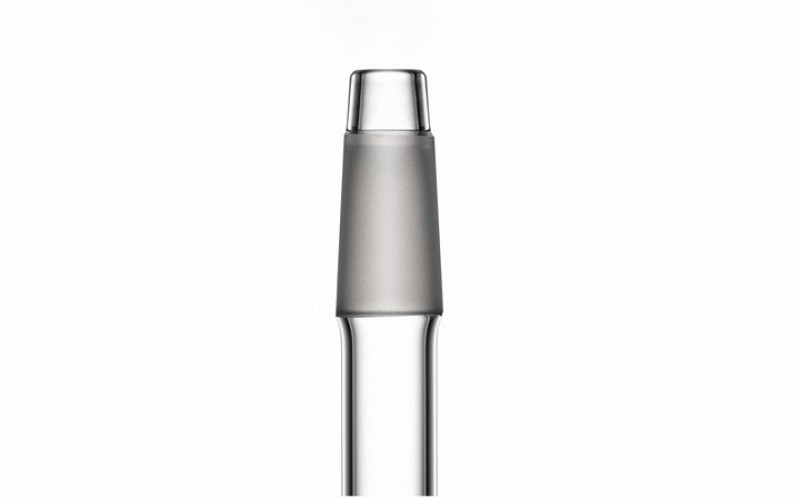

NS conical ground joint cones with tip

Description

NORMAG fine grinding handmade by Normag in Ilmenau, ground with 1200 grit, highest quality guaranteed
Ground joint grease required - alternatively PTFE seal, p. 43/44
Temperature resistance:
- + 200°C - not insulated,
- minus temperature limited by grinding grease/sealing
Pressure resistance:
- -1/+0.1 barg when using conventional clamps,
- -1/+0.5 barg with NS ground joint p. 38
Material in contact with product: Borosilicate glass 3.3
Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
