Glass Components for Processors
Normag - Lab & Process Glass
Technologies

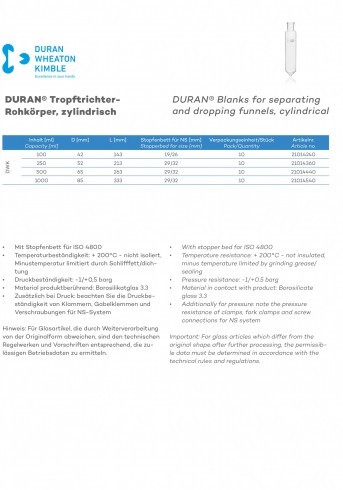

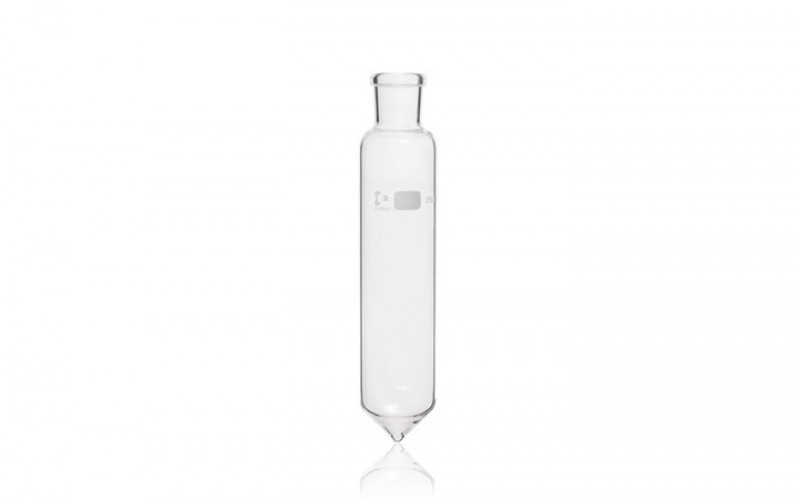

DURAN® Blanks for separating and dropping funnels, cylindrical
![](https://www.gmmpfaudler.com/thumb/930/Platzhalter_720x448px_1628772060.jpg)
Description
- With stopper bed for ISO 4800
- Temperature resistance:
- + 200°C - not insulated,
- minus temperature limited by grinding grease/sealing
- Pressure resistance: -1/+0.5 barg
- Material in contact with product: Borosilicate glass 3.3
- Additionally for pressure: note the pressure resistance of clamps, fork clamps and screw connections for NS system
Important: For glass articles which differ from the original shape after further processing, the permissible data must be determined in accordance with the technical rules and regulations.
