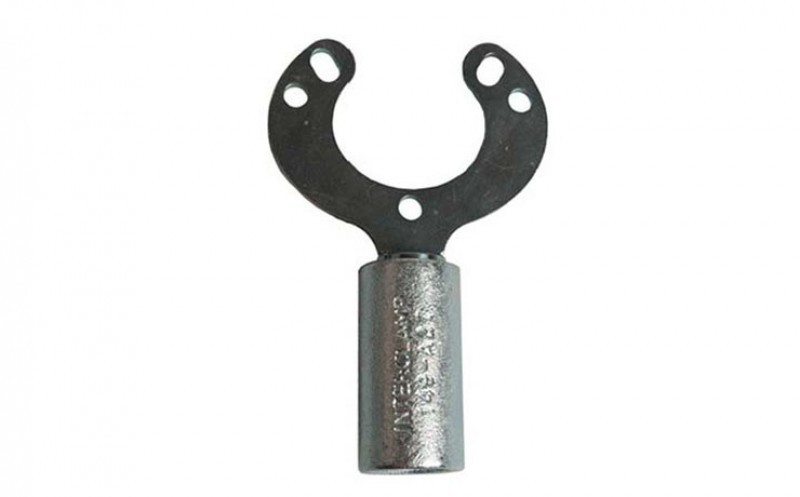

Support bracket, steel galvanized
![](https://www.gmmpfaudler.com/thumb/930/Halteklaue--Stahl-verzinkt.jpg)
Description
- Use to support weights of vertical pipelines and form a fixed point
- To avoid tensile stresses, glass piping should be supported at the lowest point

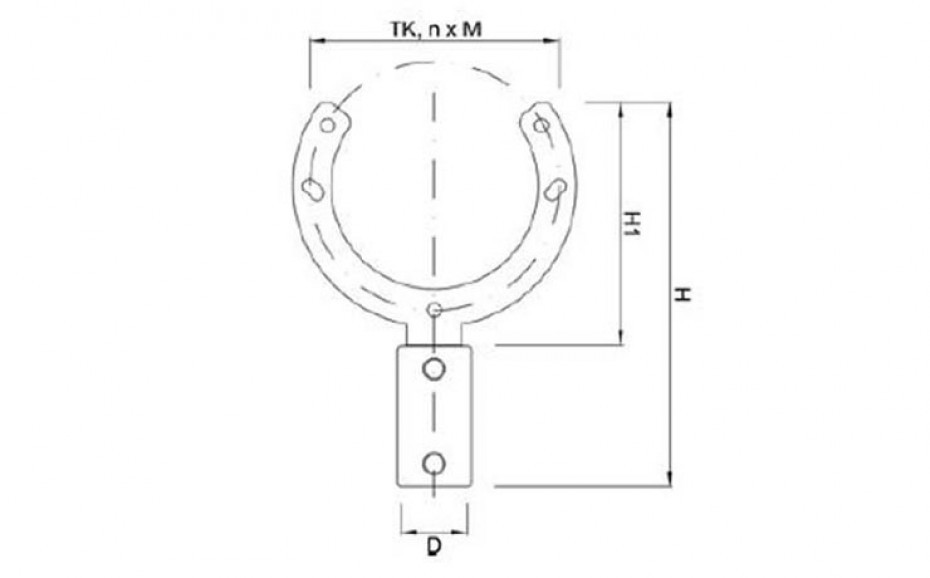

- Provided with several holes or slotted holes for the different pitch circles:
- 1) Pitch circle for PF systems,
- 2) Pitch circle for KF systems,
- 3) Pitch circle for silumin flange rings
- Material: steel galvanized
