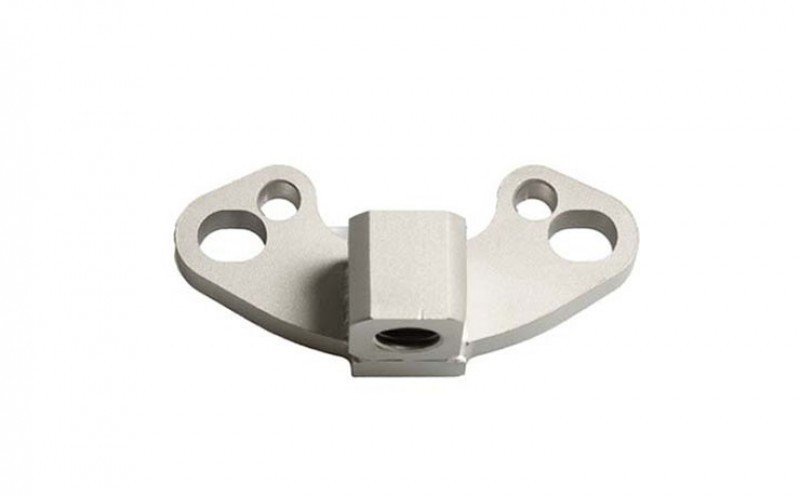

Support bracket, M12, stainless steel
Description
- Use to support weights of vertical pipelines and form a fixed point
- To avoid tensile stresses, glass piping should be supported at the lowest point
- Provided with several holes or slotted holes for the different pitch circles:
- 1) Pitch circle for PF systems,
- 2) Pitch circle for KF systems,
- 3) Pitch circle for silumin flange rings
- Material: stainless steel 1.4301 (AISI 304)
