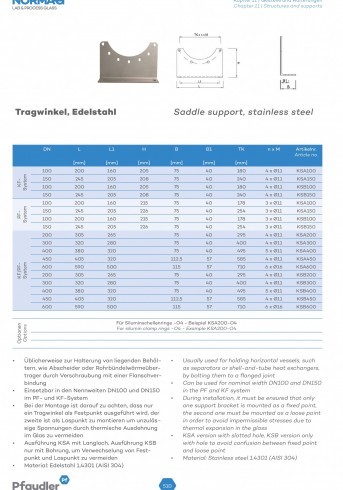

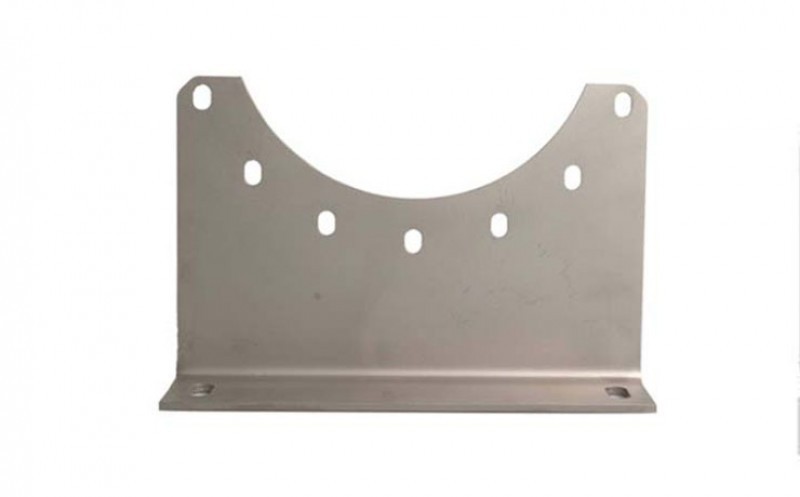

Saddle support, stainless steel

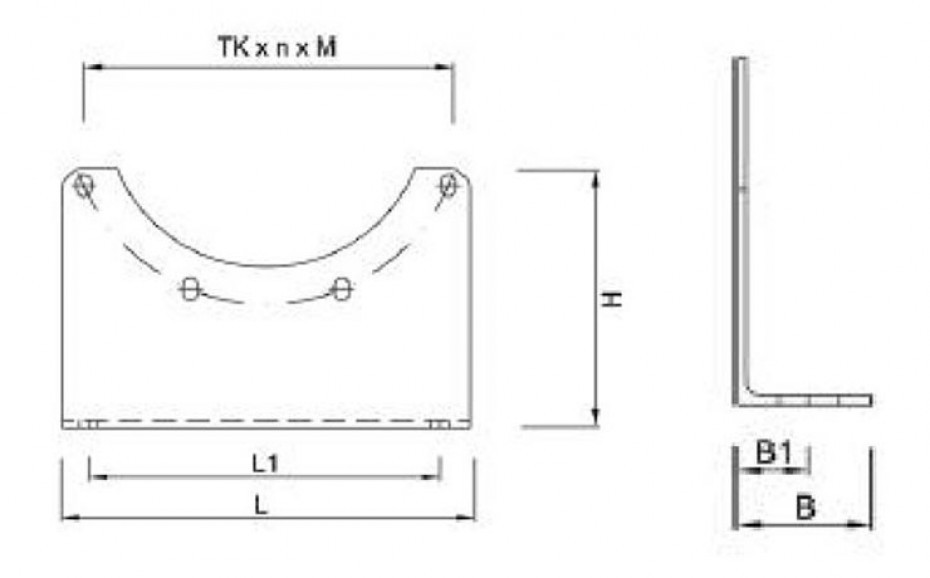

![](https://www.gmmpfaudler.com/thumb/930/Tragwinkel--Edelstahl_1.jpg)
Description
- Usually used for holding horizontal vessels, such as separators or shell-and-tube heat exchangers, by bolting them to a flanged joint
- Can be used for nominal width DN100 and DN150 in the PF and KF system
- During installation, it must be ensured that only one support bracket is mounted as a fixed point, the second one must be mounted as a loose point in order to avoid impermissible stresses due to thermal expansion in the glass
- KSA version with slotted hole, KSB version only with hole to avoid confusion between fixed point and loose point
- Material: Stainless steel 1.4301 (AISI 304)
