AntiStat X™
Edlon - Fluoropolymers
Technologies

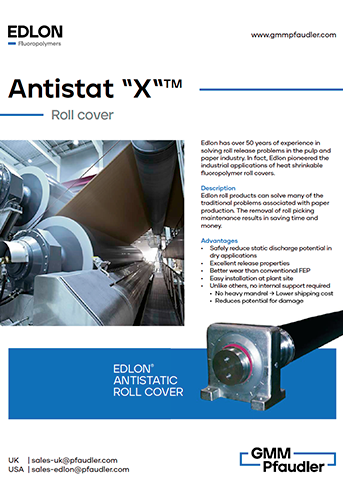

EDLON® Antistat X™ Roll Cover
Edlon has over 50 years of experience in solving roll release problems in the pulp and paper industry. In fact, Edlon pioneered the industrial applications of heat shrinkable fluoropolymer roll covers.
Combining our years of experience and R&D while listening to our customer's needs lead us to develop the Antistat X(TM) product line.
Advantages
- Safely reduces static discharge potential in dry applications
- Excellent release properties
- Better wear than conventional FEP
- Easy installation on site in plant
- Unlike others, no internal support required
- No heavy mandrel → Lower shipping cost
- Reduces potential for damage
AntiStat X table of properties
| physical properties | specifications |
|---|---|
| Shrinkage temperature | 250°F to 400°F (121° C to 204° C) |
| Continue service temperature | Up to 480°F (249° C) |
| Tensile strength (at break) | 73° F (23° C): 4000 psi (28N/mm²) |
| Elongation | 300% |
| Volume resistivity | < 1 × 108 Ohm.cm |
| Nominal wall thickness | 0.060” (1.5mm) |
