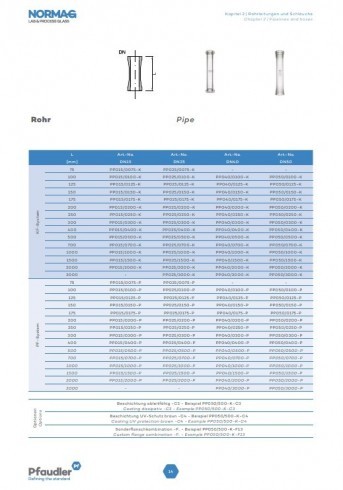

Rohr

Beschreibung

Horizontally laid pipes are loaded with the liquid content in addition to their own weight
In order to distribute this load evenly, an appropriate number of supports must be provided
More detailed information on laying can be found in the chapter „Technical Information“

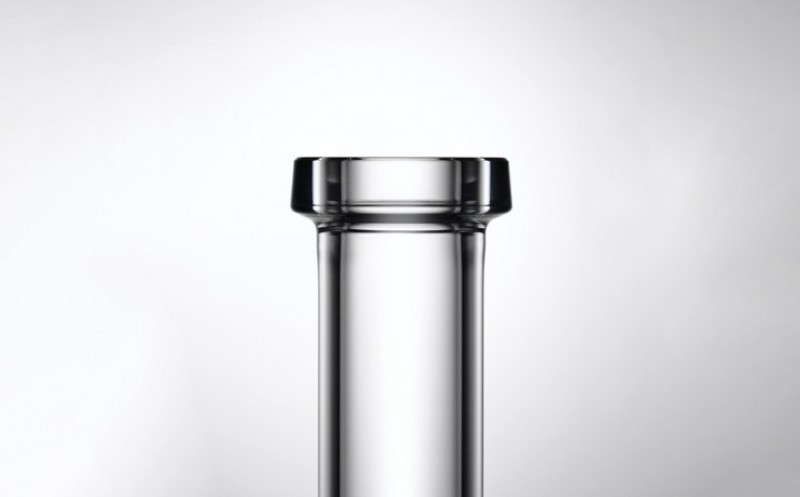

KF: Flanges designed as in drawing with KF ball and KF cup
Permissible operating temperature: -50...+200°C
Permissible operating pressure:
- 1...6 barg DN015-025, -1...4 barg DN040-050,
- 1...3 barg DN080, -1...2 barg DN100-150,
- 1...1barg DN200-300, -1...0,5 barg DN400-600
Material product contacting: borosilicate glass 3.3
